Oracle SOA/BPM 12c Installation

Oracle SOA/BPM 12c Installation steps on windows

Following steps

1. Install Database
2. Install SOA/BPM software
3. Create Repository
4. Create Domain.

First you need to downloaded latest Oracle SOA/BPM installation files from Oracle site.

i.e. http://www.oracle.com/technetwork/middleware/bpm/downloads/index.html?ssSourceSiteId=ocomen

Decompress files and get Jar files

Install latest JDK i.e 1.8

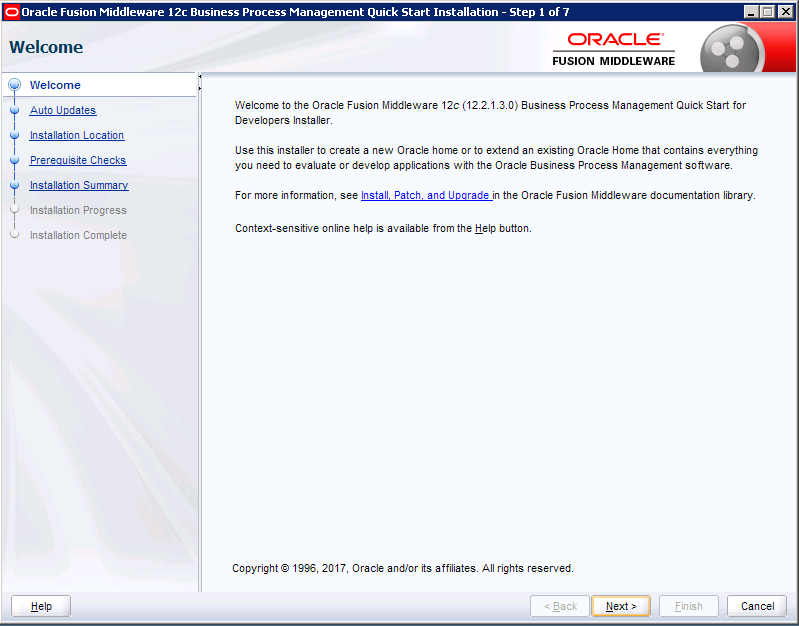

Install SOA/BPM Suite

Please set the JAVA_HOME before you start

Run the setup but using the following command

Java –jar fmw_12.2.1.3.0_bpmquickstart.jar

Next

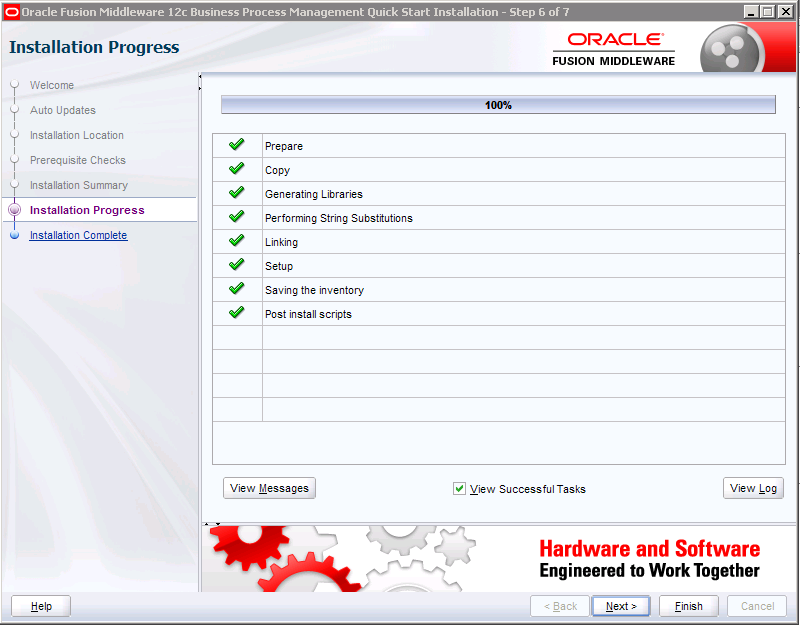

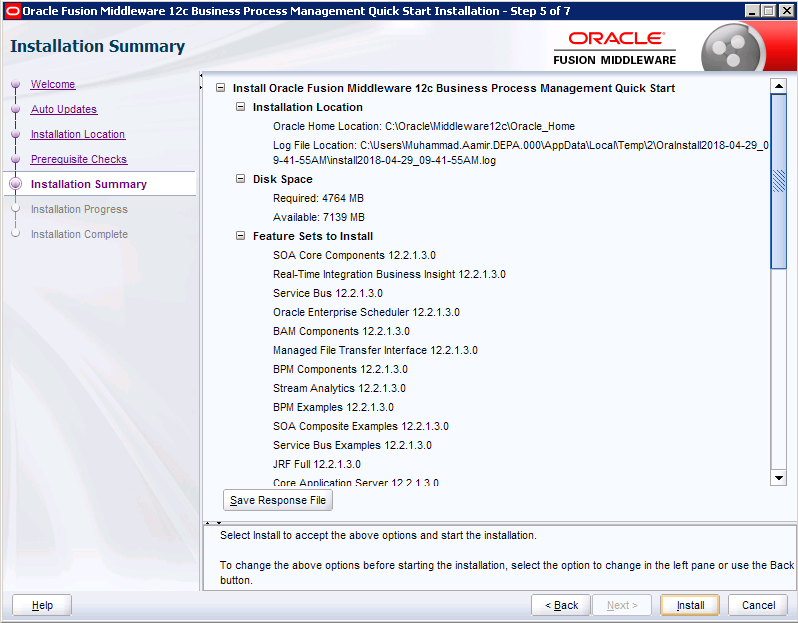

Install

Click next and unselect “Start JDeveloper” check box

And Finish Installation process.

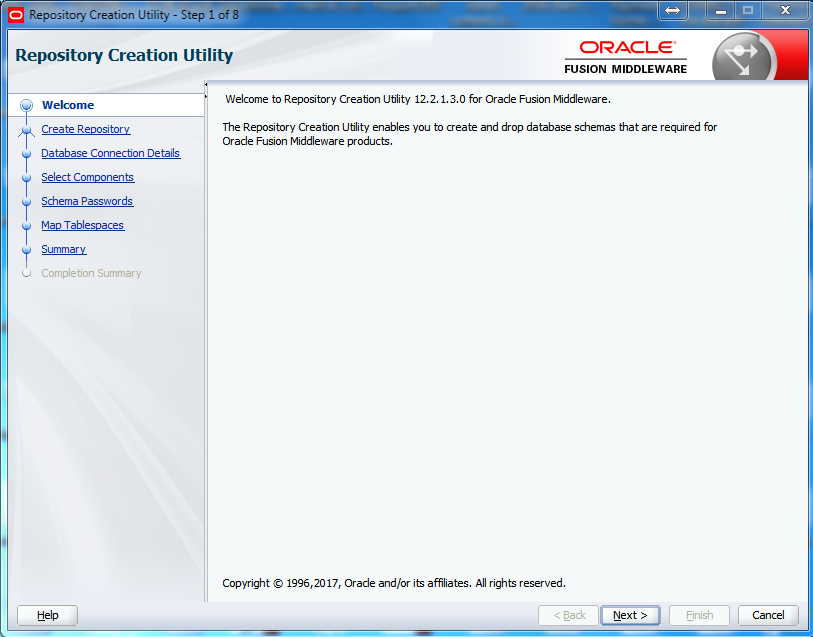

Repository creation

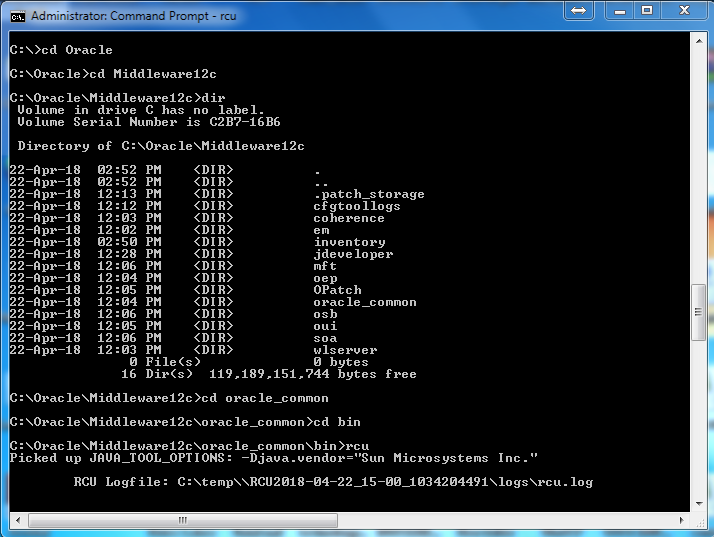

Go to oracle_common\bin

And run rcu

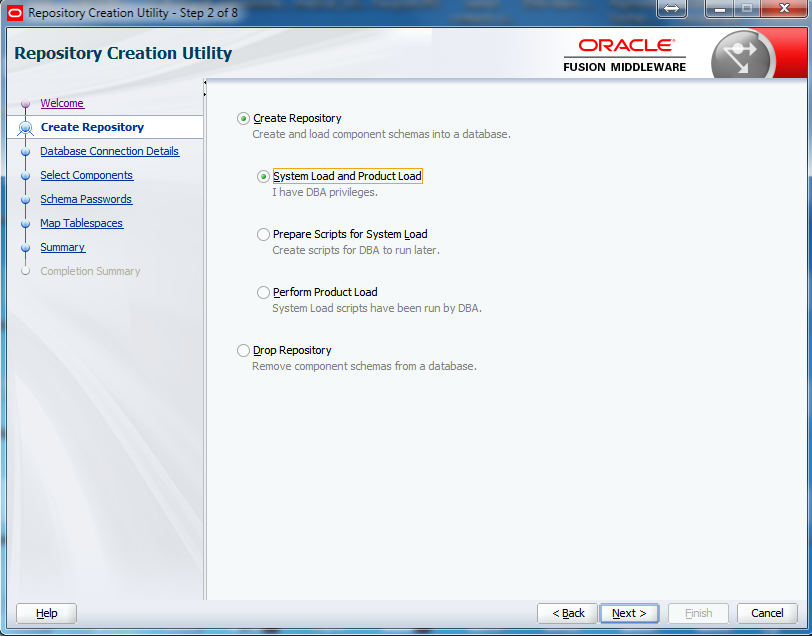

System load and product load if you have sysdba access to repository database

Otherwise select Prepare Scripts for system load and provide to dba

And after dba ran the scripts then Choose Perform Product Load

I am selecting System load and product load for this installation.

Assuming you already installed Oracle Database 12.1.0.2

Execute following sql to find pluggable database

select name from v$services;

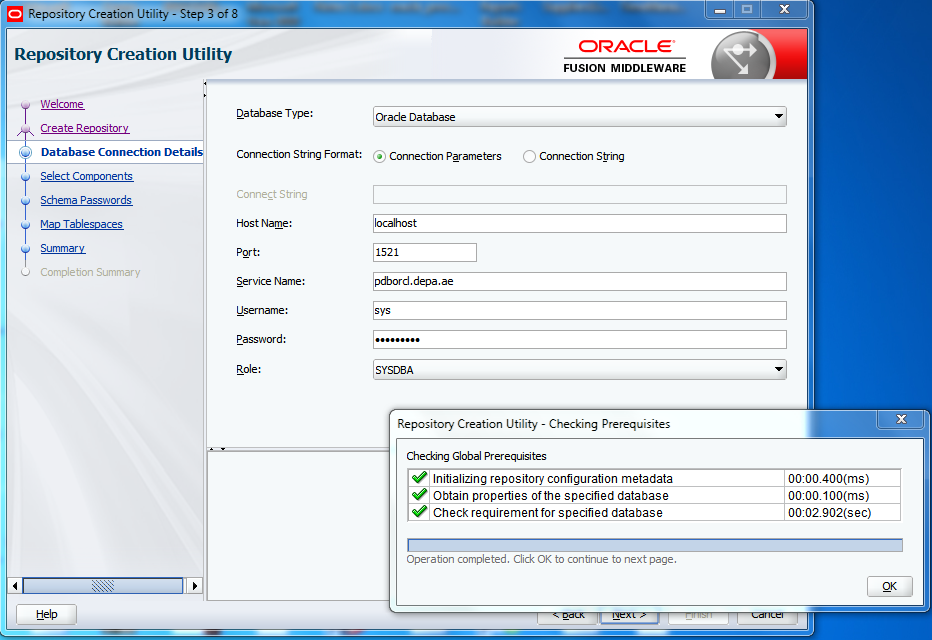

Provide database instance details and click Next and Prerequisites check dialog will appear.

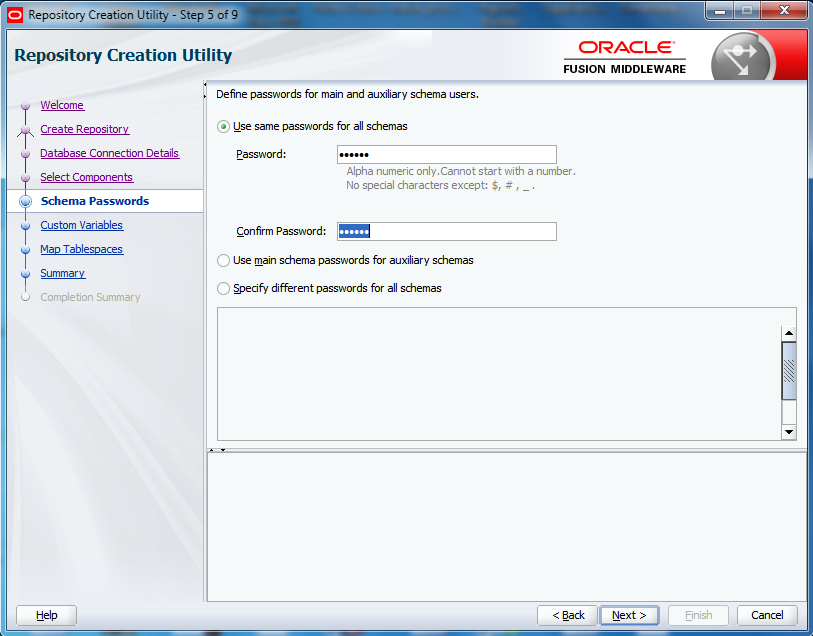

Provide repository schema password

Click Next

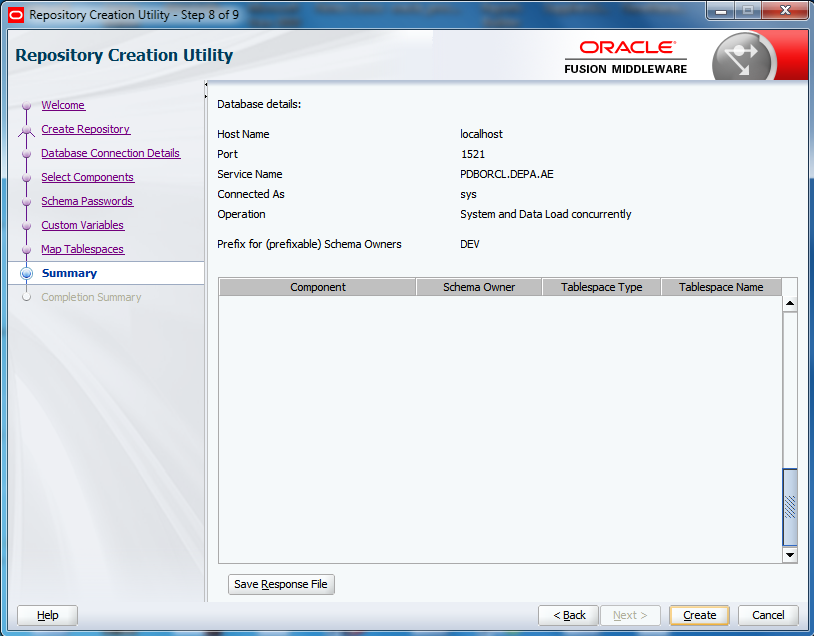

Click Create

SOA/BPM domain creation

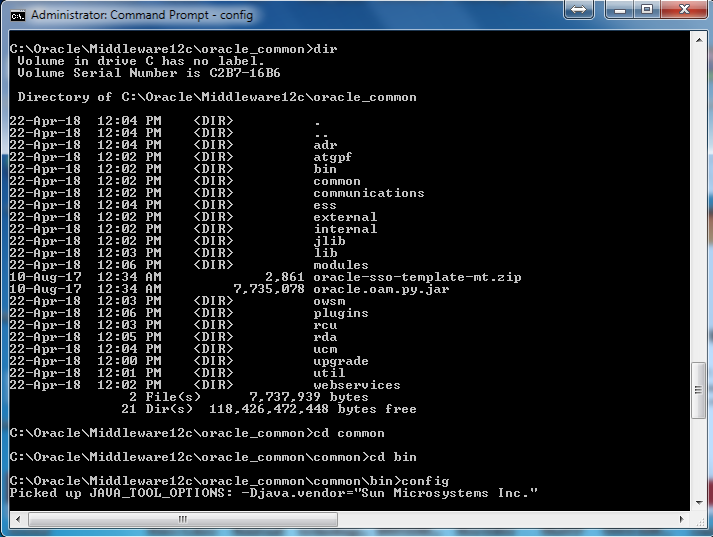

Go to oracle_common\common\bin

Run config

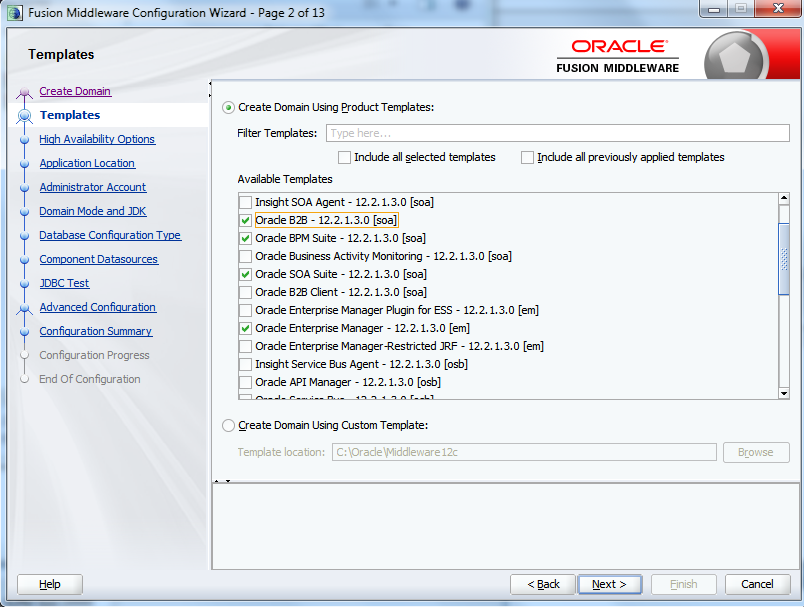

Oracle SOA suite - 12.2.1.3.0 [soa]

Oracle BPM suite - 12.2.1.3.0 [soa]

And other related competes will be automatically selected.

Optionally you can select Oracle B2B abd Business Activity Monitoring or any other required for your business process development need.

Click Net

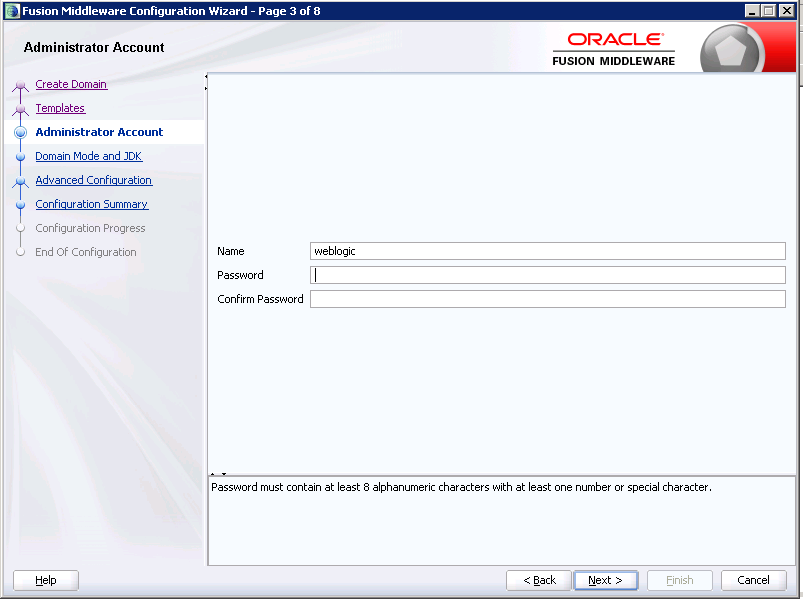

Set Weblogic Password

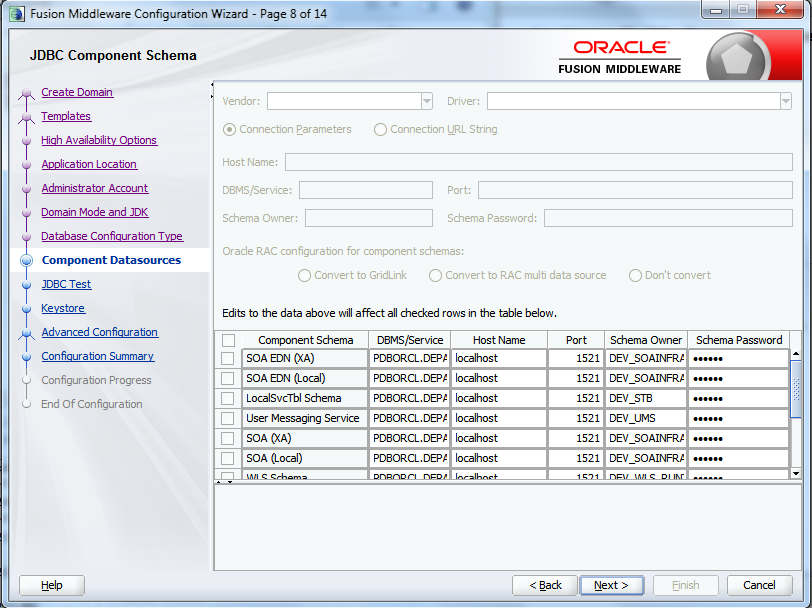

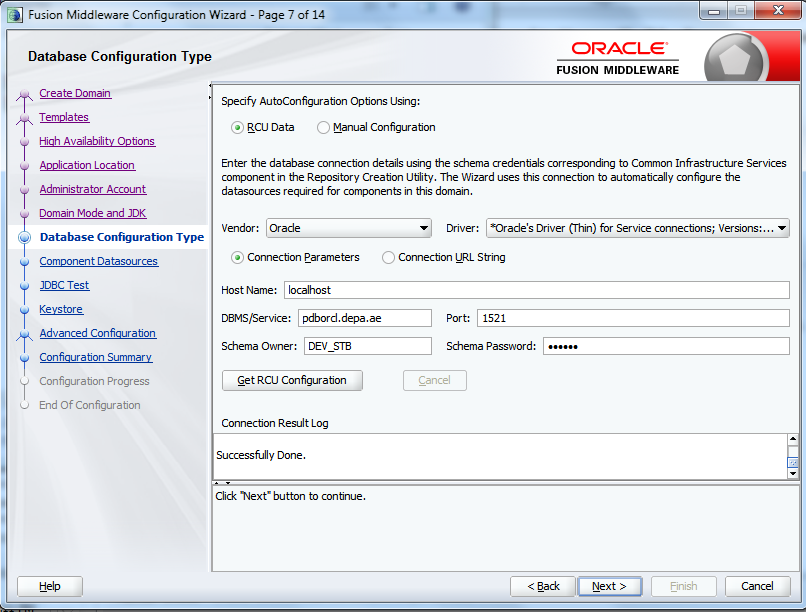

Click Next

Set domain directory or select default and click next

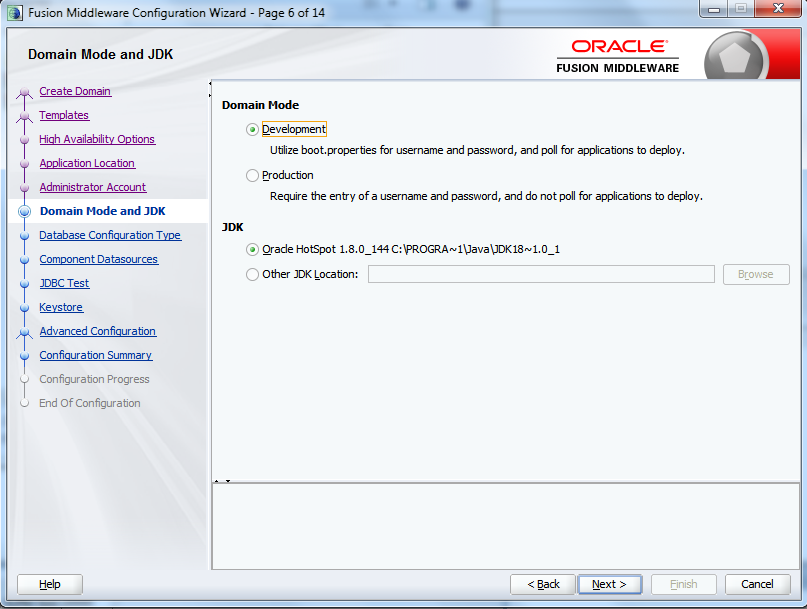

Select you domain mode and click next

Above all tests must be successfully, otherwise check the notified issues and correct before continuing.

Click Next

Click Next

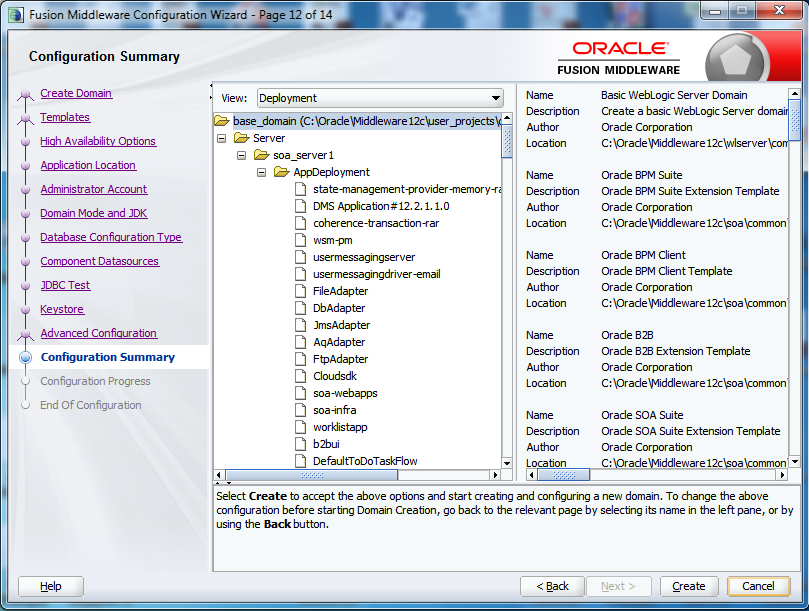

Summary report will appear and select Create

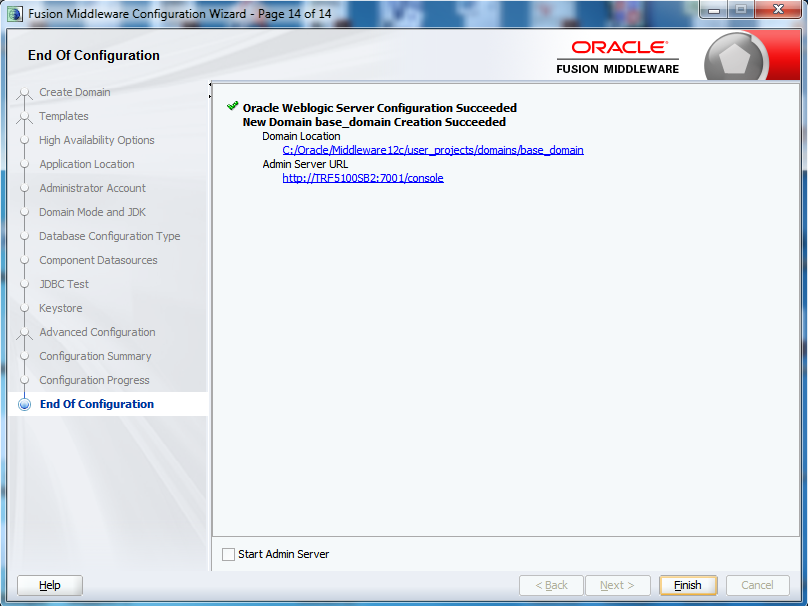

Now new SOA/BPM enabled Domain has been created and complete installation is ready for development

To start WebLogic and domain

Do to domain folder

C:\Oracle\Middleware12c\Oracle_Home\user_projects\domains\base_domain\bin

First run startWeblogic.cmd

Then run startManagedWeblogic.cmd soa_server1

And provide weblgic user and password

Please note that run start both servers in separate terminals and do not close otherwise server will be shutdown.

Oracle Jdeveloper for SOA/BPM is installed with this installation you target to jdeveloper direct under weblogic home and run j

i.e C:\Oracle\Middleware12c\jdeveloper\jdeveloper.exe

Good luck.

You can post your question and any help required, I will do my best.
